Performance Based Communications and Surveillance (PBCS) analysis

This website enables the analysis of ADS-C and CPDLC data that has been extracted in accordance with the guidelines in ICAO Performance Based Communications and Surveillance Manual Doc 9869 Appendix D

You must be an authorized user to access this website. For further information contact paul.radford@airways.co.nz

Log on

Example reports

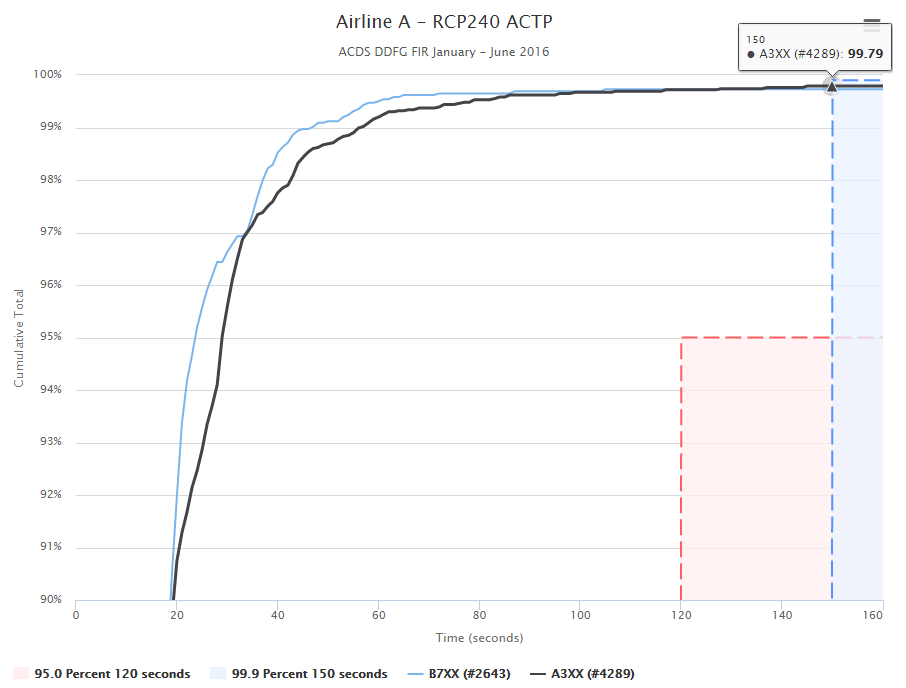

Example Chart Example Chart
CPDLC Performance
Colour Key
Meets Criteria
99.0%-99.89%
Under Criteria 		Period 1 Jan 2016 - 30 Jan 2016 95% RCP240
Benchmark		 99.9% RCP240
Benchmark
Media Type RGS Aircraft
Type		 Operating
Company		 Tail
Number		 ATSP Message
Count		 RCP <= 180 sec RCP <= 210 sec
Analysis by RCP240 ACP
SATCOM I3 All All All All All 38111 99.46 99.66
SATCOM I4 All All All All All 14630 99.67 99.8
SATCOM MSAT All All All All All 3216 99.81 99.93
ADS-C Performance
Colour Key
Meets Criteria
99.0%-99.89%
Under Criteria 		Period 1 Jan 2016 - 30 Jan 2016 95% RSP180
Benchmark		 99.9% RSP180
Benchmark
Media Type RGS Aircraft
Type		 Operating
Company		 Tail
Number		 ATSP Message
Count		 RSP <= 90 sec RSP <= 180 sec
Analysis by RSP180 ACP
SATCOM All All All All All All 1380641 98.72 99.46
VHF All All All All All All 182508 99.15 99.6
All All All All All All 1570863 99.64 99.4
